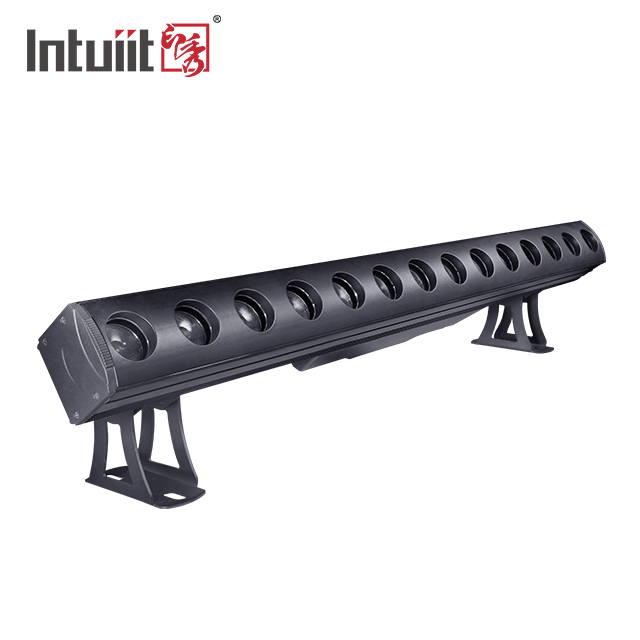

CT-001P-1M Professional Stage LED Light Bar
Product Overview
The CT-001P-1M is a high-performance stage LED light bar designed for professional applications. With its durable construction and advanced features, it is perfect for stages, theaters, and churches.
Key Features
High Power Output
- 14 Pcs * 15W RGBW 4-in-1 LEDs: Delivers excellent color mixing and high brightness.
Durability
- IP65 Rated: Waterproof and dustproof, making it suitable for outdoor and indoor environments.
- Material: Constructed from die-casting magnesium alloy and tensile aluminum with private tooling housing for a sleek design.
Beam Angle Options
- Narrow Beam Angle: 4.5° for focused lighting.
- Adjustable Beam Angles: Easily changeable using diffusion filter lens kits (20°, 40°, and 20°x40°).
Control and Operation
- Max Power: 200W for powerful lighting performance.
- DMX & RDM Functionality: Features 5-pin (3-pin) Seetronic DMX and PowerCon in/out sockets for flexible connectivity.
- OLED Display: Easy-to-use 4-touch button control panel for intuitive operation.
Dimming and Effects
- Smooth 16-bit Dimming: Provides very smooth transitions and adjustments for dynamic lighting effects.
Applications
- Stage Lighting: Ideal for concerts, theater productions, and events.
- Churches: Perfect for creating atmosphere and enhancing worship experiences.
Technical Data
| Item No. | CT-001P-1M |
| Light Source | 14Pcs*15W 4-in-1 RGBW LED |
| Max. Power | 200W |
| Work voltage | AC100-240V, 50-60Hz |
| Beam angle | 4.5Degree,8Degree ( 20D, 40D, 20*40D by diffusion filter) |
| Luminous flux | 3283lm |
| Control Protocol | DMX512,RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Product's dimension | 1022*150*239mm |
| Net weight | 10.2KG |
Light Distribution Data
Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
